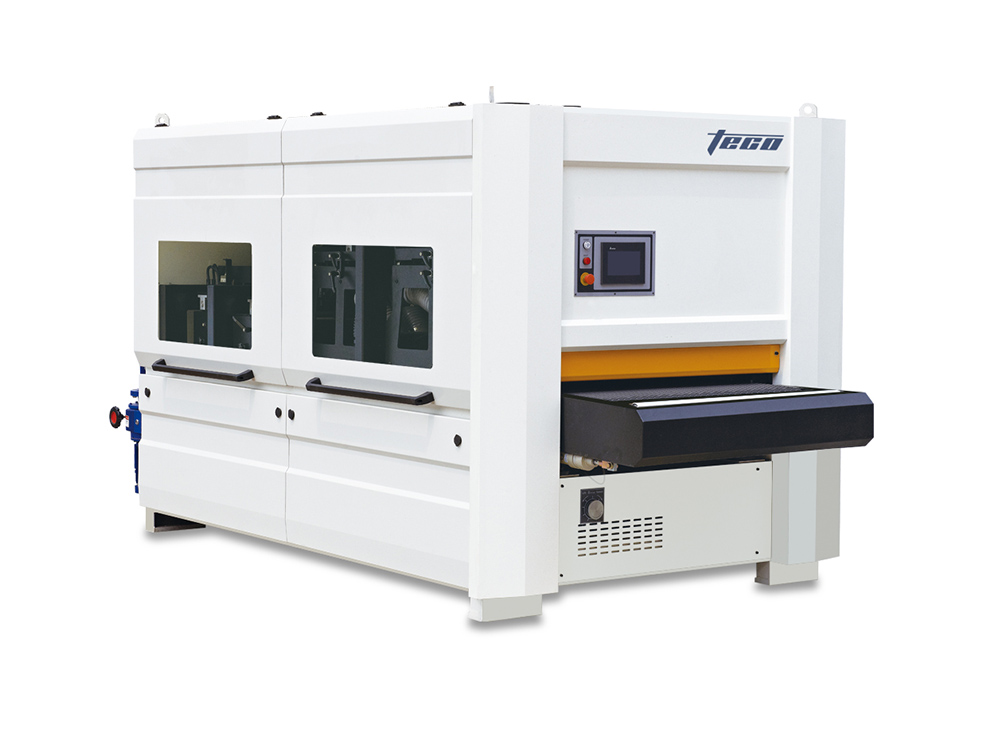

本機型主要使用于：門板、浮雕、家具等凹凸造型的打磨，破氨、白茬及油漆的打磨。
設備參數：
|
型號 |
TYPE |
QSG1000R6(A) |
QSG1300R6(A) |
|
加工寬度 |
Working Width |
20-1000mm |
20-1300mm |
|
加工厚度 |
Working Thickness |
2-110mm |
2-110mm |
|
加工板材長度 |
Working Length |
≥400mm |
≥400mm |
|
輸送帶速度 |
Feed Speed |
2.5-12.5m/min |
2.5-12.5m/min |
|
電機總功率 |
Total Motor Power |
12.85KW |
13.65KW |
|
工作氣壓 |
Working Air Pressure |
≥0.6Mpa |
≥0.6Mpa |
|
工作電壓 |
Working Voltage |
380V 50HZ |
380V 50HZ |
|
吸塵量 |
Dust inhalation |
8200m3/h |
8200m3/h |
|
吸塵口直徑 |
Vacuuning Mouth Diameter |
∮150mmX4個 |
∮150mmX4個 |
